USA Sumo Series Workstation Tool Kit - 114" - Metric/SAE - 707pc - Black/Chrome Handles

SP50845
$15,995.00 +GST
Qty
Available:999999
USA Sumo Series Workstation Tool Kit - 114\" - Metric/SAE - 707pc - Black/Chrome Handles

KIT INCLUDES:

1/4”Dr Sockets & Accessories
  • 12pt - 4, 5, 6, 7, 8, 9, 10, 11, 12 & 13mm
  • 12pt - 3/16, 7/32, 1/4, 9/32, 5/16, 11/32, 3/8, 7/16 & 1/2”
  • Torx - T10, T15, T20 & T2545T
  • Ratchet, Flex Handle & Universal Joint
  • Extension Bars - 50 & 150mm
3/8”Dr Sockets and Accessories
  • 12pt - 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21 & 22mm
  • 12pt - 1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16 & 7/8”
  • 12pt Deep - 10, 11, 12, 13, 14, 15, 16, 17, 18 & 19mm
  • 12pt Deep - 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16 & 3/4”
  • 6pt Impact - 10, 11, 12, 13, 14, 15, 16, 17, 18 & 19mm
  • 6pt Deep Impact - 10, 11, 12, 13, 14, 15, 16, 17, 18 & 19mm
  • Torx - T27, T30, T40, T45, T50 & T55
  • Inhex - 6, 7, 8, 9 & 10mm
  • Inhex - 3/16, 7/32, 1/4, 5/16 & 3/8”
  • Spark Plug Sockets - 5/8 & 13/16”
  • 45T Ratchet, Flex Handle & Universal Joint
  • Extension Bars - 75 & 150mm
  • Adapters - 3/8Fx1/4M (x2) & 3/8Fx1/2M
1/2”Dr Sockets & Accessories
  • 12pt - 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 26, 27, 30 & 32mm
  • 12pt - 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1, 1-1/16, 1-1/8, 1-3/16 & 1-1/4”
  • 6pt Deep Impact - 10, 12, 13, 14, 15, 17, 18, 19, 21, 22 & 24mm
  • 6pt Deep Impact - 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16 & 1”
  • Spark Plug Sockets - 5/8 & 13/16”
  • 45T Ratchet, Flex Handle & Universal Joint
  • Extension Bars - 75, 125 & 150mm
  • Adapter - 1/2Fx3/8M

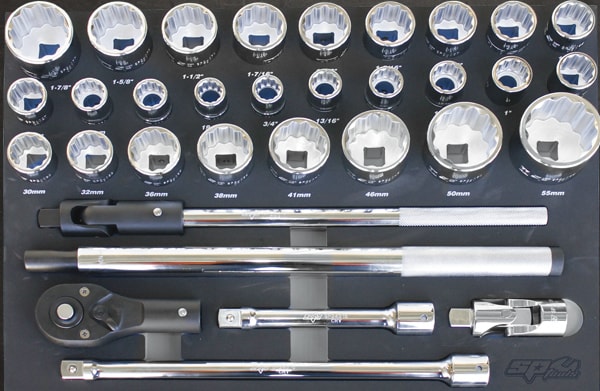

3/4”Dr Sockets & Accessories
  • 12pt - 19, 22, 24, 27, 30, 32, 36, 38, 41, 46, 50 & 55mm
  • 12pt - 3/4, 13/16, 7/8, 15/16, 1, 1-1/16, 1-1/8, 1-3/16, 1-1/4, 1-5/16, 1-3/8, 1-7/16, 1-1/2, 1-5/8 & 1-7/8”
  • 24T Ratchet, Flex Handle & Universal Joint
  • Extendable Handle
  • Extension Bars - 200 & 400mm
Spanners
  • Quad Drive Combination Spanners - 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25 & 26mm
  • Quad Drive Combination Spanners - 1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16 & 1”
  • Gear Drive Quad Drive Spanners - 10, 11, 12, 13, 14, 15, 16, 17, 18 & 19mm
  • Gear Drive Quad Drive Spanners - 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16 & 3/4”
  • Flare Nut Spanners - 10x11, 12x13, 14x17 & 19x22mm
  • Flare Nut Spanners - 3/8x7/16, 1/2x9/16, 5/8x11/16 & 3/4x7/8”
  • Double Box Ring Spanners - 8 x 9, 10 x 11, 12 x 13, 14 x 15, 16 x 17 & 18 x 19mm
  • Double Box Ring Spanners - 5/16 x 3/8’’, 7/16 x 1/2’’, 9/16 x 5/8’’, 11/16 x 3/4’’ & 7/8 x 15/16’’
Cordless Tools
  • 12v 3/8”Dr Mini Impact Wrench
  • 12v 2.0Ah Battery Pack
  • 12v Battery Charger
  • 18v 1/2”Dr Impact Wrench
  • 18v 4.0Ah Battery Pack
  • 18v 2.0Ah Battery Pack
  • 18v Battery Charger
Air Tools
  • 1/4” Die Grinder - Medium Straight
  • 3/8” Mini Impact Ratchet Wrench
  • 1/2” Impact Wrench
Tools
  • Screwdrivers - 3.0x75, 5.5x100, 6.5x38, 6.5x100, 6.5x150 & 8.0x150mm
  • Screwdrivers - #0x75, #1x75, #2x38, #2x100, #2x150 & #3x150mm
  • Screwdrivers - T8, T10, T15, T20, T25, T27, T30 & T40
  • Precision Screwdrivers - 2.0x50, 2.5x50, 3.0x50, #0x50, #00x50 & #000x50mm
  • Hex Keys - 1.5, 2, 2.5, 3, 4, 5, 6, 8 & 10mm
  • Hex Keys - 1/16, 5/64, 3/32, 1/8, 5/32, 3/16, 1/4, 5/16 & 3/8”
  • Torx Keys - T10, T15, T20, T25, T27, T30, T40 & T50
  • Hex Keys Stubby - 1.5, 2, 2.5, 3, 4, 5, 6, 8 & 10mm
  • Hex Keys Stubby - 1/16, 5/64, 3/32, 1/8, 5/32, 3/16, 1/4, 5/16 & 3/8”
  • Torx Keys Stubby - T10, T15, T20, T25, T27, T30, T40 & T50
  • Ratchet Bit Set -31pc
  • Power Bit Set - 67pc
  • Impact Driver Bit Set - 13pc
  • Pliers - Combination, Long Nose, Multigrips (3) & Locking
  • Circlip Pliers Set - 4pc
  • Cutters - Diagonal (2)
  • Adjustable Wrenches (3)
  • Hammers - Ball pein 16oz & 24oz, Soft/Hard Head - 35mm, Dead Blow - 44oz
  • Hacksaw
  • Tape Measure
  • Pin punch & chisel set - 10pc

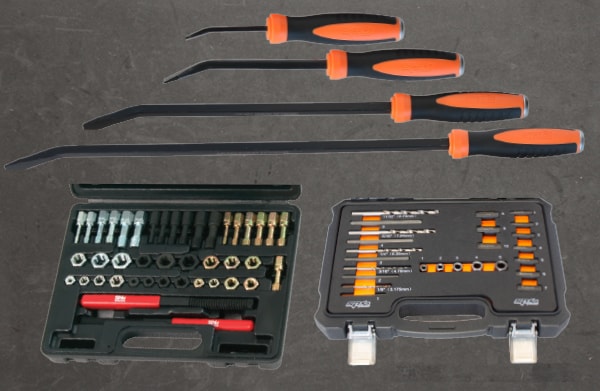

  • Pry Bar set - Go Through - 4pc
  • Centre Punch Set - 4pc
  • Screw Extractor Set - 5pc & 25pc
  • Thread Files (2)
  • Automotive Rethreading Kit - 42pc
  • Spark Plug Hole Rethreader
  •  Tungsten Carbide Burr Set - 5pc
  • Pick Set - 4pc
  • Tweezer Set - 4pc
  • Mini Wire Brush Set - 3pc
  • Telescopic Inspection Mirror
  • Telescopic Magnetic Pick-up Tool
  • Knife
  • Feeler Gauge Set - 32pc
  • Double Sided Feeler Gauge Set -26
  • Gasket Scraper Set - 3pc
  • Line Clamp Set - Straight - 3pc
  • AC & Fuel Line Disconnect set
  • Oil Filter Wrench - Strap Type (Truck)
  • LED Pen Magbase Torch/Work Light
  • SMD LED Magbase Torch/Work Light
  • Digital Electrical Multimeter
  • Digital Tachometer - Non Contact
  • Circuit Tester - 3 to 48V (car & truck)
  • Digital Vernier Calipers - 200mm/8”
  • Mechanics Protective Seat Cover
  • Mechanics Mudguard Protector
  • Mechanics Creeper
  • Air Duster - Long Nozzle
  • Spray Cleaning Gun - 1L
  • SP Tools Coffee Mug
  • SP Spanner Bottle Opener
  • SP Stubby cooler
  • USA Sumo Series 73" Roller Cabinet - 13 Drawer
  • USA Sumo Series 73" Power Top Hutch - Shelf/Pegboard/Light/Power board
  • USA Sumo Series 27" Side Cabinet - 4 Roller Shelves/1 Fixed Shelf
  • USA Sumo Series 27" Side Cabinet - 3 Fixed Shelves/Clothes Hang Rail



CONTENTS GUIDE:

































DIMENSIONS:

114” COMPLETE WORKSTATION COMBINED DIMENSIONS:



  • 2900w x 622d x 1752h (1954h with castors)
  • (6’1” Head Clearance



59" ROLLER CABINET & TOP POWER HUTCH COMBINED DIMENSIONS:



  • 1500w x 622d x 1752h (1954h with castors)
  • (6'1" Head Clearance)



59" USA Sumo Series Power Top Hutch



  • 1500w x 622d x 864h (mm)



59" USA Sumo Series 13 Drawer Roller Cabinet



  • 1500w x 622d x 888h (1090h with castors)(mm)
  • 1x Drawer: 1367w x 575d x 115h
  • 4x Drawers: 736w x 575d x 45h
  • 1x Drawer: 736w x 575d x 100h
  • 1x Drawer: 736w x 575d x 240h
  • 4x Drawers: 566w x 575d x 45h
  • 1x Drawer: 566w x 575d x 100h
  • 1x Drawer: 566w x 575d x 240h



27" USA Sumo Series Side Cabinet



  • 700w x 622d x 1954h (mm)



27" USA Sumo Series Side Cabinet



  • 700w x 622d x 1954h (mm)



PART 1 | USA SUMO SERIES ASSEMBLY GUIDE

Attaching your new USA SUMO SERIES Roll Cab to your new USA SUMO SERIES Power Top Hutch.



PART 2 | USA SUMO SERIES ASSEMBLY GUIDE

Attaching of your new USA SUMO SERIES side cabinets to the already assembled USA SUMO SERIES Roll cab and Power Top Hutch Combo.
